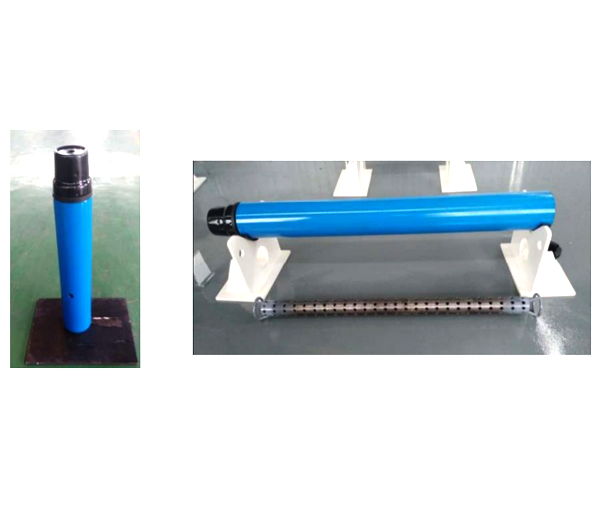

Multiple Activation Bypass System

Visits:8 Time:2022-05-26

Introduction

      The Multiple Activation Bypass System is a simple, reliable tool that can assist you in reducing drilling costs associated with different types of hole conditions. Originally developed to increase circulation rates for enhanced hole cleaning, we have evolved to benefit many applications in the drilling, completion, and workover phases of a well. It can be widely used for multiple circulation plugging, and services like workover, completion, etc. By applying into plugging job, it can greatly reduce trip times, save drilling time and decrease non-production cost.

Applications recommended:

1. Plugging operation by pumping in large particles squeeze cement etc., no tripping needed.

2. Special operation like pump in toxic liquid.

3. Washing operation in Directional Wells, Horizontal Wells and Highly-deviated wells etc.

4. Hydro blast the wellhead, Casing or BOPs cavities removing lodged solids/debris.

5. Cleaning the solid or debris in the section mill or milling operations.

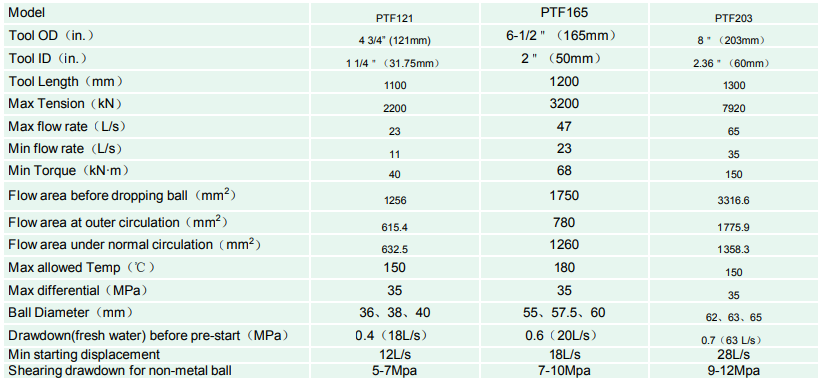

Specification


Features & Advantages

• Work mode actuated and changed by dropping ball and controlling displacement

• By-pass and normal work mode can be switched multiple times

• Any work mode can be checked by recording the times of ball dropping;

• Ball size is selectable

• Training and operation are easy going;

• Trip time is greatly reduced;

• Non-production time is significantly decreased;

• Easy and quick to understand the work mode of the tool.
