Type JZ Weight Indicator System

Technical Features

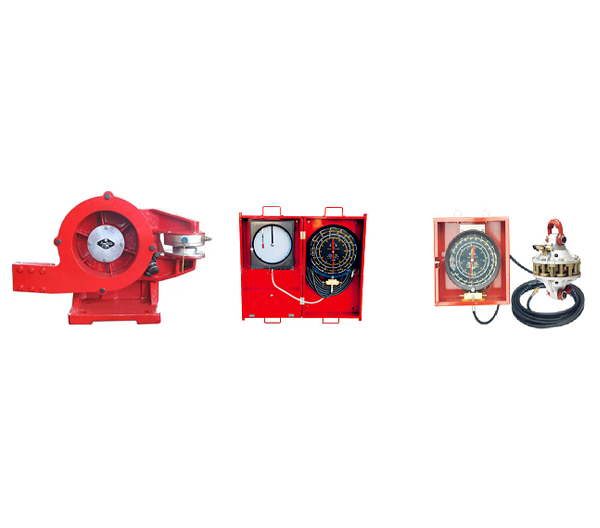

Type JZ weight indicator provides drillers with an easy to use and interpret way to track hook load and weight on bit. They are made up of sensor and pressure gauge. Also we can add an recorder according to customer’s demand.

Technical Parameters

l   Max. deadline tension: 100kN, 125kN, 136.6kN.

l   Number of lines: 6, 8.

l   Load: 600kN~1092.8kN

l   Output pressure: 4.2MPa, 5.2MPa, 6MPa

l   Sensor accuracy: ±1.0%

l   System accuracy：±2.0%

l   Working temperature: -40℃~50℃
